SK510 ME Remote Control System

The SK510 main propulsion unit remote control system is a modular structure, which can be composed according to different user requirements and for different remote-control objects. The modules communicate with each other through redundant CAN-BUS fieldbus.

a) SK510-D-I reversible fixed propeller propulsion unit remote control system is applicable to the main propulsion unit with reversible fixed propeller for low speed or medium speed engine. The main diesel engine can be started, reversed and shifted directly by remote control manipulator in the cab or control room.

b) K510-CPP full rotary rudder pulp propulsion unit remote control system is applicable to the main propulsion unit with adjustable pitch propeller. With cockpit control, two-wing control, central control room control, aircraft-side control, cockpit backup control, central control room backup control, etc.

c) SK510-AD full rotary rudder pulp propulsion unit remote control system is applicable to the main propulsion unit with full rotary rudder propeller. It has cab control, machine side control, backup control, etc.

The system is designed and used in accordance with the environmental conditions required by the specifications of each classification society.

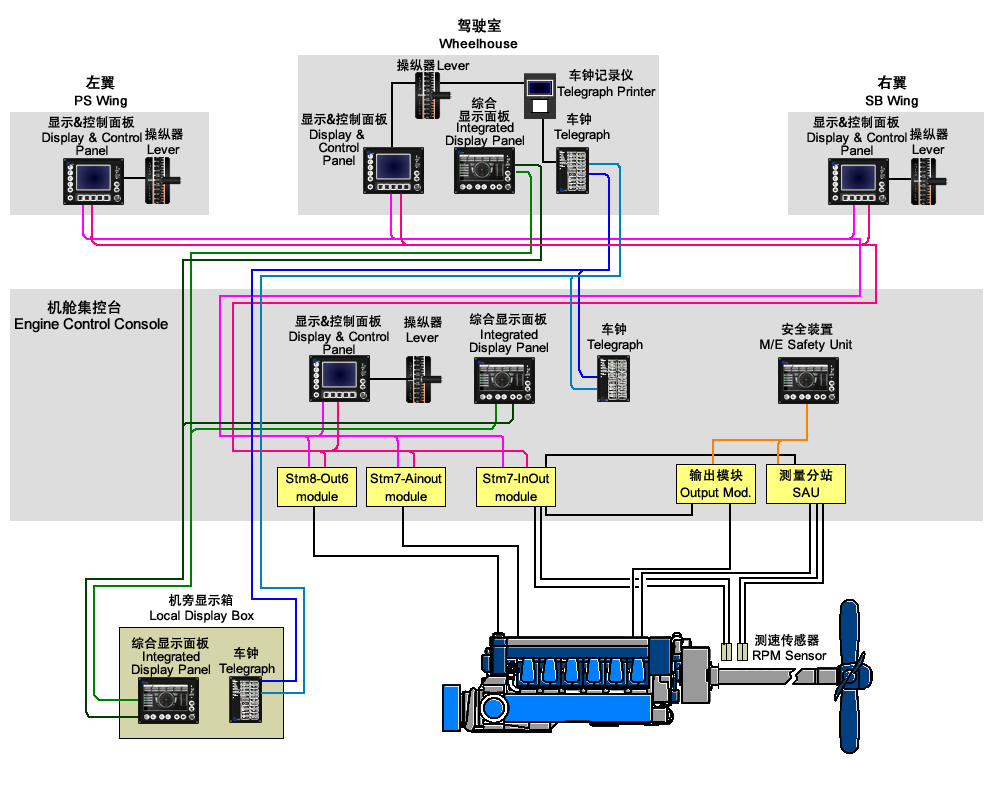

  SK510-D-I Topological Graph

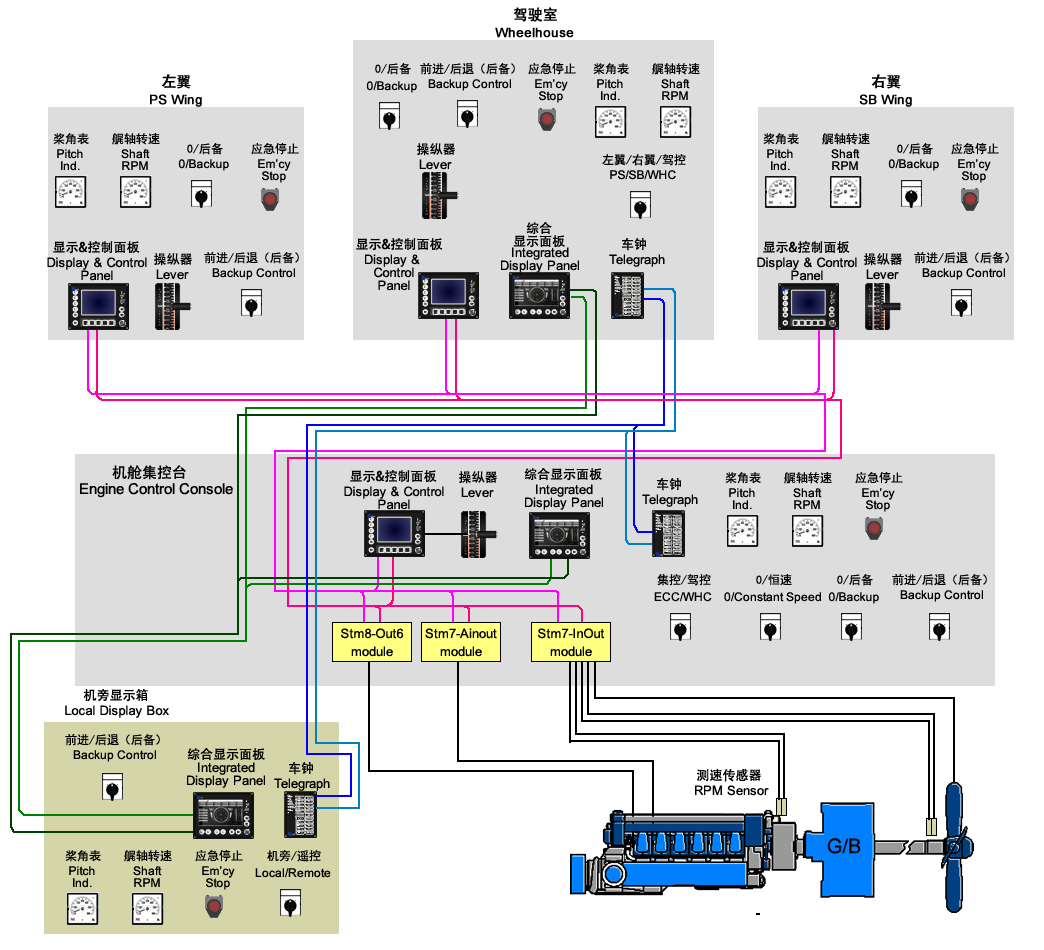

  SK510-CPP Topological Graph

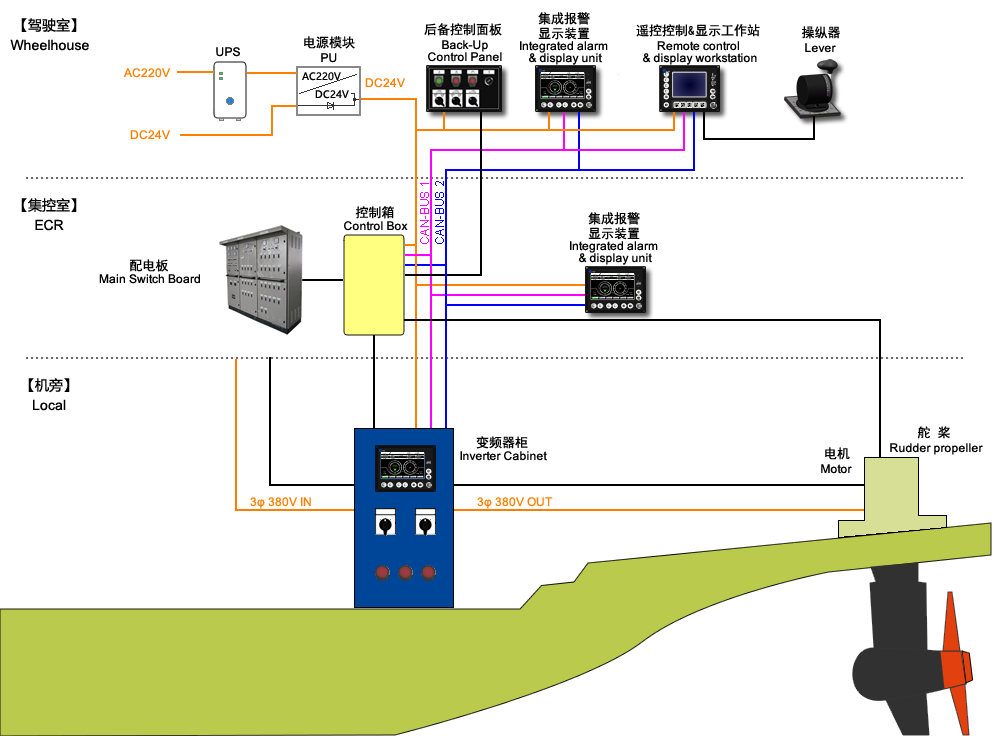

  SK510-AD Topological Graph
